| Parameters | 51.2NESR200 | NESR48100 | 51.2NESR100 | |
| Nominal Voltage(v) | 51.2 | 48 | 51.2 | |
| Nominal Capacity(Ah) | 200 | 100 | ||
| Nominal Energy(Kwh) | 10.24 | 4.8 | 5.12 | |
| Discharge Current (A) (Max.) | 200 | 100 | ||
| Charge Voltage(V) | 57.6±0.5 | 54±0.5 | 57.6±0.5 | |
| Charge Current (A)(Recomm.) | 40 | 20 | ||
| Charge Current (A)(Max.) | 200 | 100 | ||
| Typical Weight(kg) | 85 | 40 | 42 | |
| Dimensions(W*D*H)(mm) | 442.5X540X230 | 442.5X440X133.5 | ||
| Status Indicators | SOC/RUN/ALM | |||
| Communication Ports | CAN/RS485 | |||
| Communication In Parallel | 16 | |||
| Switch | Available | |||
| Operating Temperature | Discharge | Max.: -20 ~ 60°C,Recommend:10~35°C | ||
| Charge | Max.: 0 ~ 60°C,Recommend:10~35°C | |||
| Storage Temperature | 0~40°C | |||
Humidity | 5%~95% | |||
| Cycle Life (25°C) | ≥6000 | |||
| IP Level | IP20 | |||
| Scalability | Up to 163.84kWh (16 groups) | Upto 76.8kWh (16groups) | Upto81.92kWh (16groups) | |
| LCD | Available | |||
| Gryo/Communication Antitheft | Optional | |||

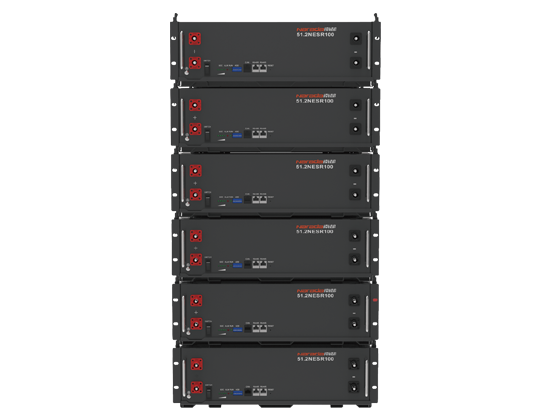

Battery Energy Storage System
Promote the Transformation of the Energy Structure
NESRBack
Technical Advantages
•Deep cycling and long service life.
•Modular design and easy to install.
•Excellent safety performance.
•Communication Mode: CAN, RS485.
•Supporting parallel expansion.
•Good compatibility and wide application.
- Product Performance
